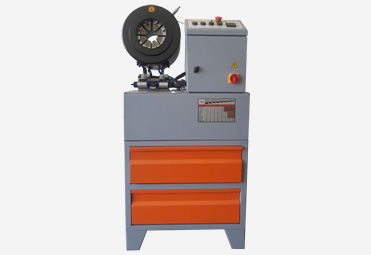

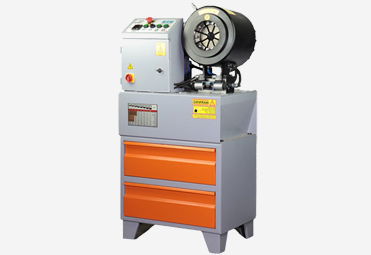

- Automatic Model
Pacific Co. Ltd. is also a professional supplier of Hydraulic Hose Crimping Machine (Hydraulic Hose Crimper, Hose Assembly Equipment, Hose Crimpers, or Hydraulic Hose Press Machines) in hydraulic crimping technology and solutions in Turkey.
Hydraulic Hose Crimping Machine is used globally in such in such industries as hydraulic hoses, heavy machinery, automotive components, construction equipment, railroad, marine, mining, electric power transmission, industrial hoses and tube, pipe, wire and cable industry, etc.

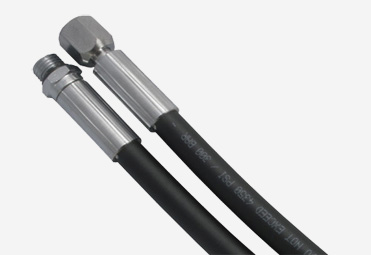

Hose Crimper is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering. It can also be used for crimping steel pipes, especially large pipes and irregular shape pipes. The operator friendly functions make them easy to use while providing reliability and long-life.
Machine Specifications
| Crimping Capacity | 3/16″ – 2″ |
| Maximum Crimp Diameter | 66 mm |
| Crimp Pressure | 200 ton |
| Running Pressure | 300 bar |

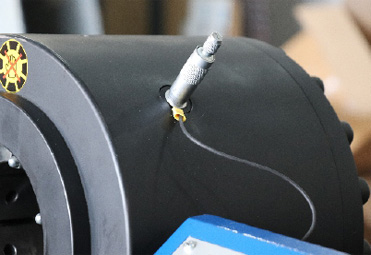

| Return Distance Adjustment | Micrometer |
| Crimp Dimension | 10-80 |
| Maximum Opening | +22 mm |
| Control System | Electrically |
| Crimp Power | 1800 kN |
| Motor (kW) | 4 kW – 380V 3PH |
| Crimp Speed | 6 |
| Operation Mode | Automatic |
| Machine Dimensions (mm) | 450x650x750 |
| Number of Die | 11 |
| Die Sets | 15-18-21-24-27-33-39-45-51-57-66 |
| Weight | 310 Kg. |

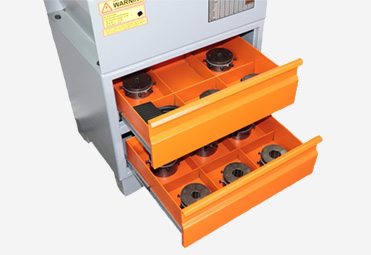

Die Set and Ranges
| Die Numbers | Hose Diameter | 0 Turn | 1 Turn | 2 Turns | 3 Turns | 4 Turns | 5 Turns | 6 Turns | 7 Turns |
| 15 | 1/8” – 3/16” | 15 | 16 | 17 | 18 | 19 | |||
| 18 | 1/4” | 18 | 19 | 20 | 21 | 22 | |||
| 21 | 5/16” – 3/8” | 21 | 22 | 23 | 24 | 25 | |||
| 24 | 1/2” | 24 | 25 | 26 | 27 | 28 | |||
| 27 | 5/8” | 27 | 28 | 29 | 30 | 31 | 32 | ||
| 33 | 3/4” | 33 | 34 | 35 | 36 | 37 | 38 | ||
| 39 | 1” | 39 | 40 | 41 | 42 | 43 | 44 | ||
| 45 | 1”3/8 | 45 | 46 | 47 | 48 | 49 | 50 | ||
| 51 | 1”1/4 | 51 | 52 | 53 | 54 | 55 | 56 | ||
| 57 | 1”1/2 | 57 | 58 | 59 | 60 | 61 | 62 | 63 | 64 |
| 66 | 2” | 66 | 67 | 68 | 69 | 70 | 71 | 72 | 73 |
| Masterdies | 105 | 106 | 107 | 108 | 109 | 110 | 111 | 112 | |
Some Applications
The machine is widely used in engineering machinery, oil fields, steel mills, ship manufacturing, agricultural machinery, coal and other industries.
Features
Self lubricating moving components,
Silent pump,
6 o’clock position die in fixed position for greater stability of the hose during crimping,
Protactor for orientator fittings,
Compact design for use in repair workshops,
Full automatic controlled,
Equipped with a foot pedal, very convenient for free hand operate.

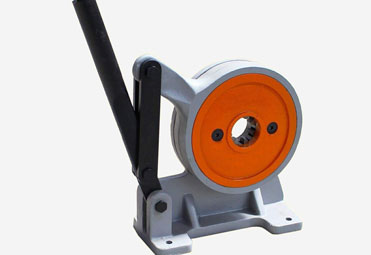

- Manual Model
| Crimping Capacity | 8 – 35 mm / 4 – 30 mm |
| Number of Die | 8 |
| Operation Mode | Manual |
| Machine Dimensions (mm) | 300x340x140 |
| Weight | 21 Kg. |
