Jet Impulse Filter is used efficiently and suited for a wide range of filtering applications as well as dust-laden air from pneumatic conveying systems to exhausting air.
Jet Impulse Filter design is ideal for vacuum and pressure applications providing high cleaning efficiency. The filter contains filter sleeves with wire cages. Sleeve fabrics are ideally selected for fine particle dust separations.
Sleeve rinsing is accomplished with pressed air which are 6-7 bar for small size filters, 0,5 bar for big size filters.

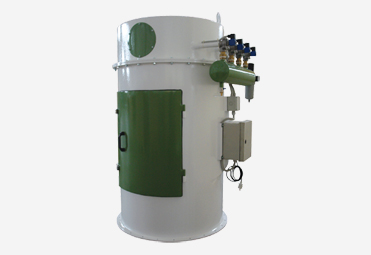

A Type

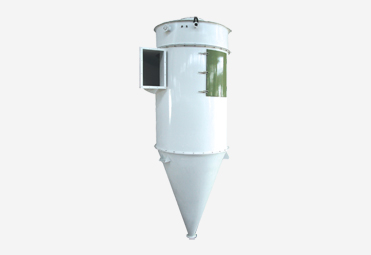

B Type

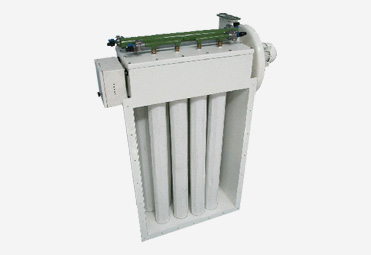

C Type
These filters are employed in fields where dust or farinaous material eliminations are concerned.
Jet Impulse Filters Performance Tables
| 51A MODEL | Number of Sleeves | Length of Sleeves (mm) | Sleeves Ø (mm) | Surface of Filter (m2) | Flow Rate (m3/min) | Aspirator (220 mm.wg) | Aspirator Motor (kW) |
| PS-51A – 4/800 | 4 | 800 | 120 | 1,2 | 5,5 | 10 m3/min | 0,75 |
| PS-51A – 4/1200 | 4 | 1200 | 120 | 1,8 | 8 | 15 m3/min | 1,1 |
| PS-51A – 6/800 | 6 | 800 | 120 | 1,8 | 8 | 15 m3/min | 1,1 |
| PS-51A – 6/1200 | 6 | 1200 | 120 | 2,71 | 13 | 20 m3/min | 1,5 |
| PS-51A – 9/800 | 9 | 800 | 120 | 2,71 | 13 | 20 m3/min | 1,5 |
| PS-51A – 9/1200 | 9 | 1200 | 120 | 4,07 | 19 | 25 m3/min | 2,2 |
| PS-51A – 12/1200 | 12 | 1200 | 120 | 5,42 | 25 | 30 m3/min | 2,2 |
| PS-51A – 12/1600 | 12 | 1600 | 120 | 7,23 | 35 | 45 m3/min | 3 |
| PS-51A – 16/1200 | 16 | 1200 | 120 | 7,23 | 35 | 45 m3/min | 3 |
| PS-51A – 16/1600 | 16 | 1600 | 120 | 9,65 | 46 | 60 m3/min | 4 |
| PS-51A – 25/1600 | 25 | 1600 | 120 | 15,07 | 72 | 90 m3/min | 5,5 |
| PS-51A – 36/1600 | 36 | 1600 | 120 | 21,71 | 104 | 130 m3/min | 7,5 |
| PS-51A – 45/800 | 45 | 800 | 120 | 13,55 | 65 | 80 m3/min | 7,5 |
| PS-51A – 45/1200 | 45 | 1200 | 120 | 20,35 | 97 | 120 m3/min | 7,5 |
| 51B MODEL | Length of Sleeves (mm) | Surface of Filter(m2) | ||||
| PS-51B – 18 | 1800 | 2400 | 3000 | 11,5 | 15,5 | 18 |
| PS-51B – 26 | 1800 | 2400 | 3000 | 16,6 | 22,4 | 26 |
| PS-51B – 39 | 1800 | 2400 | 3000 | 25 | 33,5 | 39 |
| PS-51B – 52 | 1800 | 2400 | 3000 | 33,3 | 44,7 | 52 |
| PS-51B – 78 | 1800 | 2400 | 3000 | 50 | 67 | 78 |
| PS-51B – 104 | 1800 | 2400 | 3000 | 66 | 89 | 104 |
| 51C MODEL | Number of Sleeves | Length of Sleeves (mm) | Sleeves Ø (mm) | Surface of Filter (m2) | Flow Rate (m3/min) | Aspirator (220 mm.wg) | Aspirator Motor (kW) |
| PS-51C – 2/800 | 2 | 800 | 120 | 0,6 | 3 | 7 m3/dk | 0,55 |
| PS-51C – 5/800 | 5 | 800 | 120 | 1,5 | 7 | 10 m3/dk | 0,75 |
| PS-51C – 7/800 | 7 | 800 | 120 | 2,11 | 10 | 15 m3/dk | 1,1 |
| PS-51C – 9/800 | 9 | 800 | 120 | 2,71 | 13 | 20 m3/dk | 1,5 |
| PS-51C – 5/1200 | 5 | 1200 | 120 | 2,26 | 10,7 | 15 m3/dk | 1,1 |
| PS-51C – 7/1200 | 7 | 1200 | 120 | 3,16 | 15 | 20 m3/dk | 1,5 |
| PS-51C – 9/1200 | 9 | 1200 | 120 | 4,07 | 19 | 25 m3/dk | 1,5 |
| PS-51C – 12/1600 | 12 | 1200 | 120 | 7,2 | 35 | 45 m3/dk | 3 |
