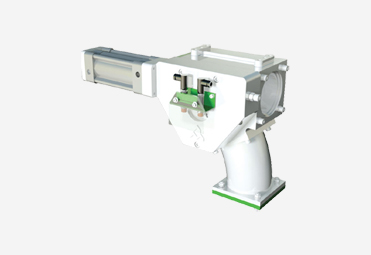

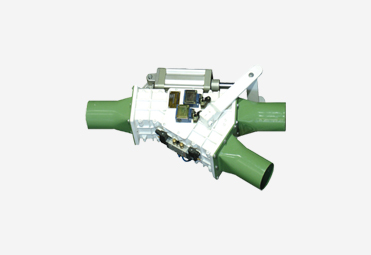

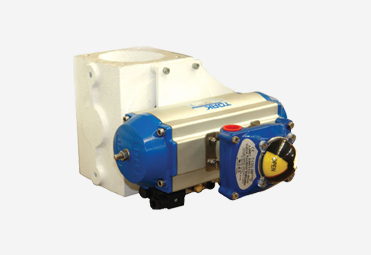

Pneumatic Diverter Valve is employed to divert the direction of air, gas (neutral) or products which are conveyed in line pneumatically.
Housing and flap are made of cast iron allowing very sensitive working clearence. The flap has both rears nylon covered in order to smooth and precise functioning. All functions of pneumatic diverter valves are controlled by compressed air solenoid valve.
There are many fields of application of diverter valves where the diverting of air, neutral gas, products are related as well as food industry, chemical industry, silo and storage systems etc.
Pneumatic Diverter Valve Table
| TECHNICAL DATA | |||
| MODELS | Max Pressure (mbar) | Weight (kg) | Pipe Ø |
| PS 37-A | 1000 | 20 | 51-76 |
| PS 37-B | 1000 | 53 | 76-108 |
| PS 37-C | 1000 | 95 | 108-150 |
| PS 37-D | 1000 | 232 | 150-200 |
